Will Rings C

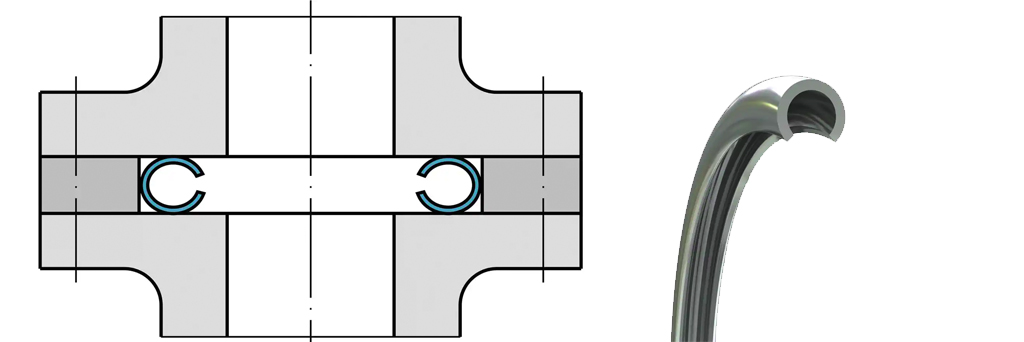

Wills Rings®C are metal C-Rings used for almost any static face sealing applications. They give reliable performance over a large temperature range in liquids and can also seal high pressures and vacuums. Wills Rings®C exhibits greater spring back and elasticity than Wills Rings®O. This characteristic provides more effective sealing where thermal expansion of the seal housing is found.
Technical Details
| Ø - Range | Pressure Range | Temp. range |
|---|---|---|
| 20 - 500 mm 0.787-19.5 in |
200 MPa 29000 psi |
up to +750°C up to +1,380°F |
Catalogs
| Document Name | Download |
|---|---|
| Will Rings C Overview (EN) | Download |
