VL Seal

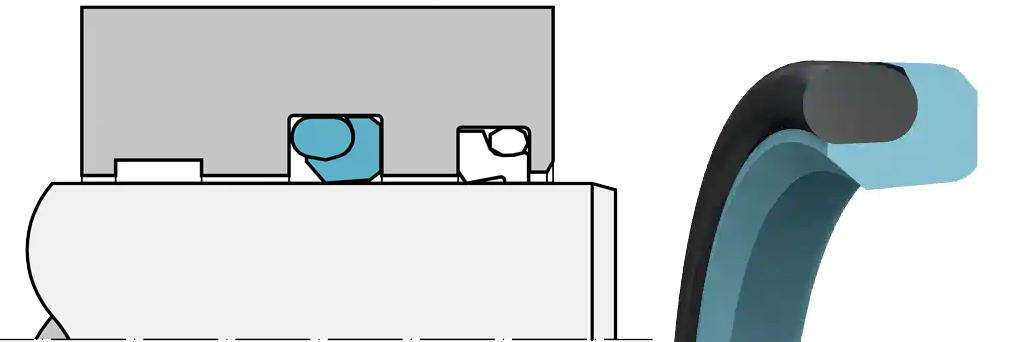

A single-acting L-shaped Turcon® seal with an elastomer energizer for dynamic applications. The design provides low friction, no stick-slip, high wear resistance and features the Stepseal back pumping effect. Available in Turcon and Zurcon materials. Installed in standard O-Ring groove.
Technical Details
| Ø - Range | Pressure Range | Temp. range | Velocity |
|---|---|---|---|
| 6 - 2.600 mm 0.236 - 102 in |
60 MPa 8700 psi |
-45 ° C + 200 ° C -50 ° F + 390 ° F |
15 m/s 50 ft/s |
