Variseal W2

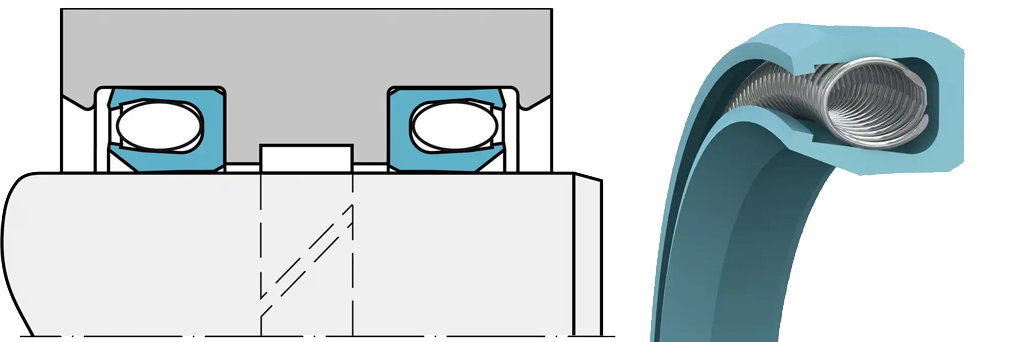

Variseal W2 is a single-acting rod seal energized by a special SlantCoil spring. The advantage of the Variseal® W2 lies in its low friction and relatively constant preloading force over a relatively large deformation range. The seal is used wherever friction has to be kept within a narrow tolerance zone, for instance in pressure switches.
Technical Details
| Ø - Range | Pressure Range | Temp. range | Velocity |
|---|---|---|---|
| 3 - 3.300 mm 0.118 - 130 in |
S: 40 D: 20 MPa S: 5.800 D: 2.900 psi |
-70°C +300°C -95°F +570°F |
L: 15 R/O/H: 1.3 m/s L: 50 R/O/H: 4.2 ft/s |
Catalogs
| Document Name | Download |
|---|---|
| Variseal W2 (EN) | Download |
