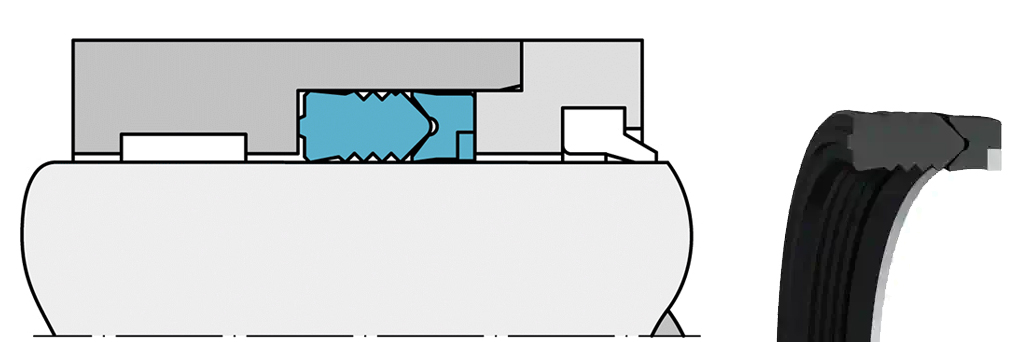

Selemaster
Compact rod seal designed for VEEPAC grooves and high pressure applications. The multi-lip elastomer sealing element is supported by a fiber-reinforced back with an integrated Back-up Ring.
Technical Details
| Ø - Range | Pressure Range | Temp. range | Velocity |
|---|---|---|---|
| 6 - 140 mm 0.375 - 8 in |
50 MPa 7250 psi |
-35°C +110°C -30°F +230°F |
0.5 m/s 1.6 ft/s |
Catalogs
| Document Name | Download |
|---|---|
| Selemaster (EN) | Download |
