Kantseal

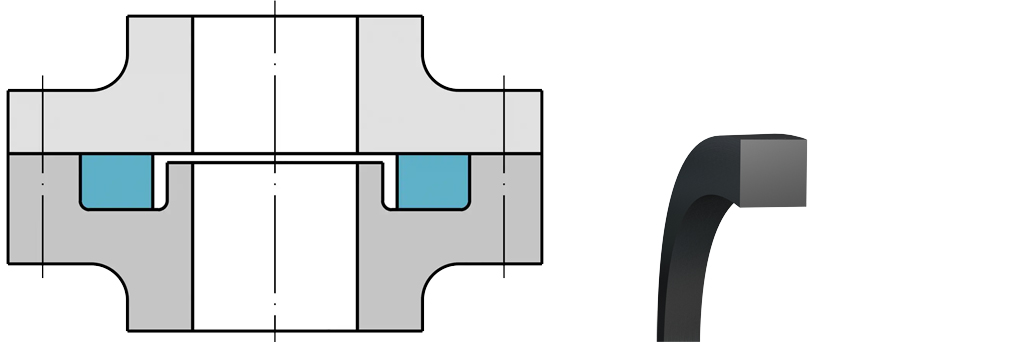

Kantseal is an elastomer square-sectioned ring for static applications. Mostly used on flanges to SAE standards and covers, it has a high sealing efficiency and keeps its shape. Available in nitrile (NBR) and fluorocarbon (FKM).
Technical Details
| Ø - Range | Pressure Range | Temp. range |
|---|---|---|
| 5 - 456 mm 0.197 - 18 in |
50 MPa 7250 psi |
-30°C +200°C -20°F +390°F |
Catalogs
| Document name | Download |
|---|---|
| Kantseal Overview (EN) | Download |
