Wynseal

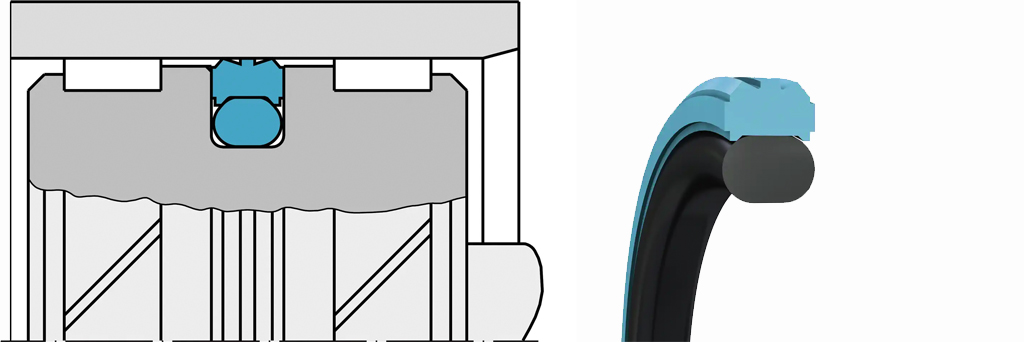

A double-acting O-Ring energized piston seal in injection molded polyurethane for dynamic applications. Installed in grooves to ISO 7425, Wynseal offers high sealing efficiency, and is tear and abrasion resistant.
Technical Details
| Ø - Range | Pressure Range | Temp. range | Velocity |
|---|---|---|---|
| 16 - 250 mm 0.625 - 10 in |
25 MPa 3625 psi |
-35 ° C + 110 ° C -30 ° F + 230 ° F |
0,8 m/s 2,6 ft/sn |
Catalogs
| Document Name | Download |
|---|---|
| Wynseal (EN) | Download |
