Wynseal M

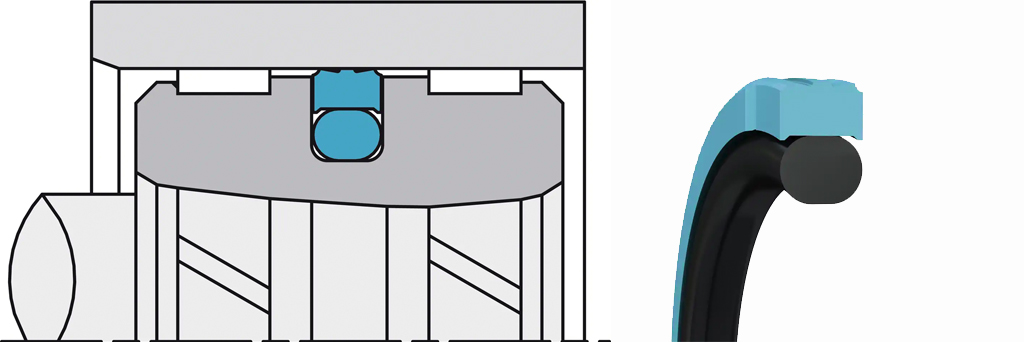

A double-acting O-Ring energized piston seal for dynamic applications in a machined version. All diameters up to 2,700 mm / 105 in. Installed in grooves to ISO 7425. High sealing efficiency in tear and abrasion resistant Zurcon® polyurethane. Also available in Turcon® materials.
Technical Details
| Ø - Range | Pressure Range | Temp. range | Velocity |
|---|---|---|---|
| 8 - 2.700 mm 0,315 - 100 in |
50 MPa 7250 psi |
-45 ° C + 200 ° C -50 ° F + 390 ° F |
10 m/s 33 ft/sn |
Catalogs
| Document Name | Download |
|---|---|
| Wynseal M for Hydraulic Piston (EN) | Download |
