VL Seal

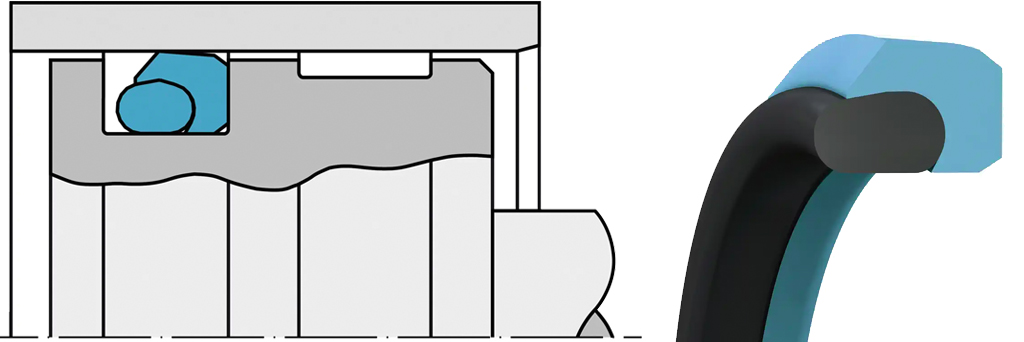

The VL Seal is a single-acting L-shaped seal with an elastic energizer for dynamic applications. Its design provides low friction, no stick-slip effect, high wear resistance. It features the Stepseal back pumping effect and is also available in Zurcon®. The seal can be installed in a standard O-ring groove.
Technical Details
| Ø - Range | Pressure Range | Temp. range | Velocity |
|---|---|---|---|
| 10 - 2.700 mm 0,400 - 105 in |
60 MPa 8700 psi |
-45 ° C + 200 ° C -50 ° F + 390 ° F |
15 m / s 50 ft / sn |
Catalogs
| Document Name | Download |
|---|---|
| VL Seal for Hydraulic Piston (EN) | Download |
