Gldy Ring D

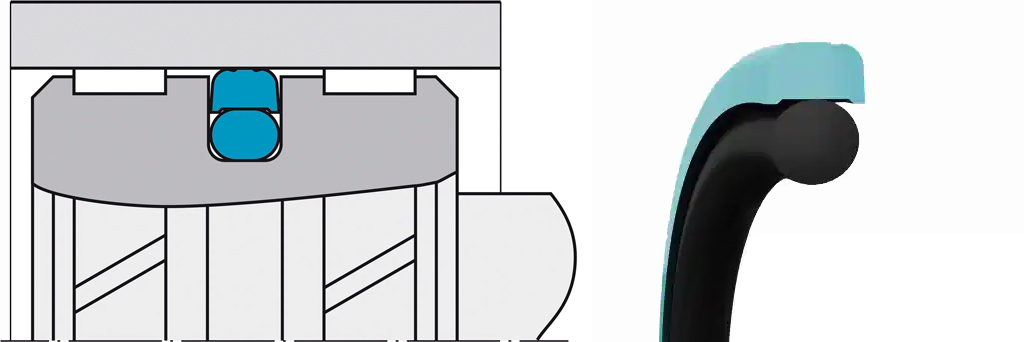

Glyd Ring D is a double-acting seal consisting of a premium polyurethane Zurcon® Z13 seal ring and an elastomer O-Ring as the energizing element. The innovative D-shaped design optimizes contact pressure and the two special grooves incorporated keep an oil reservoir for adequate lubrication that minimizes heat generated by friction forces.
Technical Details
| Pressure Range | Temp. range | Velocity |
|---|---|---|
| up to 60 MPa 8700 psi |
-30 ° C + 110 ° C -22 ° F + 230 ° F |
0,5 m/s 1,6 ft/sn |
Catalogs
| Document Name | Download |
|---|---|
| Glyd Ring D (EN) | Download |
