Double Delta

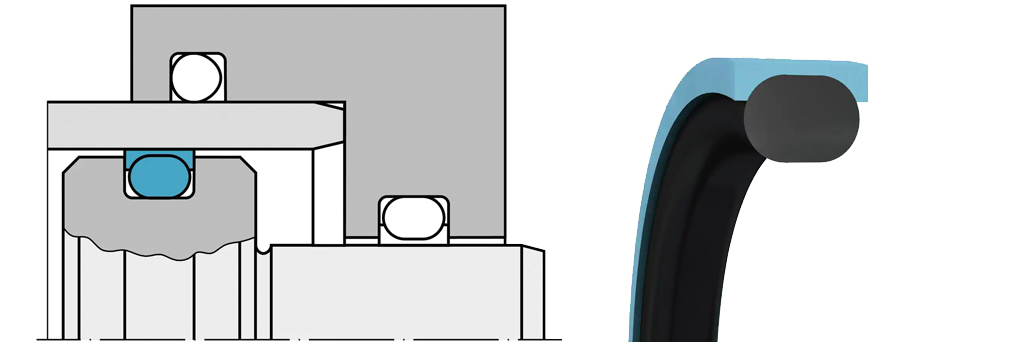

The Double Delta is a double-acting sealing element which is energized by an elastomer O-Ring. The Double Delta seal can be fitted in existing O-Ring grooves (US standard AS 568 A, MIL-P-5514) and it demonstrates good friction properties, stick-slip-free starting and excellent dry-running. The Double Delta is used in light and medium-duty industrial hydraulics.
Technical Details
| Ø - Range | Pressure Range | Temp. range | Velocity |
|---|---|---|---|
| 4 - 2.700 mm 0.157 - 105 in |
35 MPa 5075 psi |
-45 ° C + 200 ° C -50 ° F + 390 ° F |
15 m/s 50 ft/s |
Catalogs
| Document Name | Download |
|---|---|
| Double Delta for Hydraulic Piston (EN) | Download |
