AQ Seal

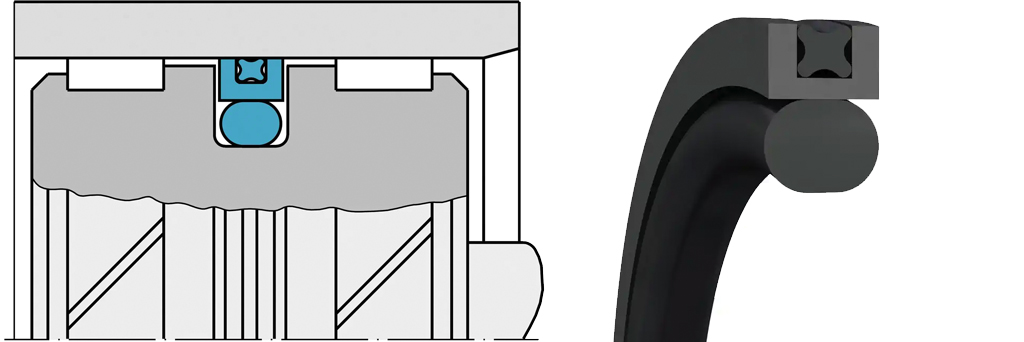

A double-acting O-Ring energized seal developed for sealing between two media such as fluid and gas. It incorporates a limited footprint Quad-Ring Seal / X-Ring inset into the dynamic sealing face. Installed in grooves to ISO 7425.
Technical Details
| Ø - Range | Pressure Range | Temp. range | Velocity |
|---|---|---|---|
| 16 - 700 mm 0.625 - 27.5 in |
50 MPa 7250 psi |
-45 ° C + 200 ° C -50 ° F + 390 ° F |
2 m/s 6.5 ft/s |
Catalogs
| Document Name | Download |
|---|---|
| AQ Seal for Hydraulic Piston (EN) | Download |
