HP20

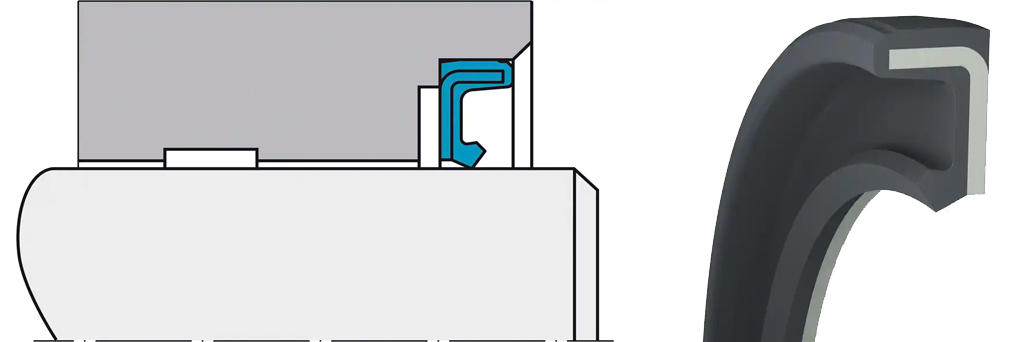

HP20 is an elastomeric rotary oil seal suitable for sealing medium to high hydraulic oil pressure at low to medium shaft speeds. Available in FPM and HNBR for standard and low temperature environments.
Technical Details
| Ø - Range | Pressure Range | Temp. range | Velocity |
|---|---|---|---|
| 17 - 300 mm | 0 - 20 MPa | -30 ° C + 100 ° C -20 ° F + 210 ° F |
4 m/s 13 ft / sn |
Catalogs
| Document Name | Download |
|---|---|
| HP20 (EN) | Download |
