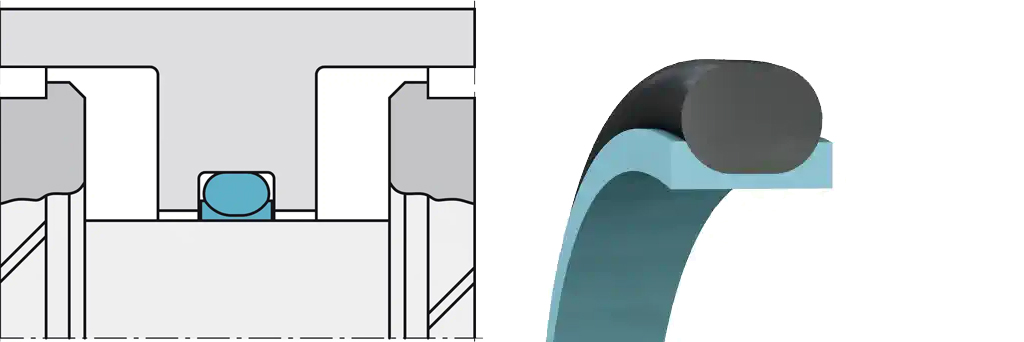

Double Delta
The Double Delta is a double-acting sealing element which is energized by an elastomer O-Ring. The Double Delta seal can be tted in existing O-Ring grooves (US standard AS 568 A, MIL-P-5514) and demonstrates good friction properties, stick-slip free starting and excellent dry running. The Double Delta is used in light and medium duty industrial hydraulics.
Technical Details
| Ø - Range | Pressure Range | Temp. range | Velocity |
|---|---|---|---|
| 2 - 1.000 mm 0,080 - 39 in |
35 MPa 5000 psi |
-45 ° C + 200 ° C -50 ° F + 390 ° F |
15 m/s 50 ft/s |
Catalogs
| Document Name | Download |
|---|---|
| Double Delta (EN) | Download |
