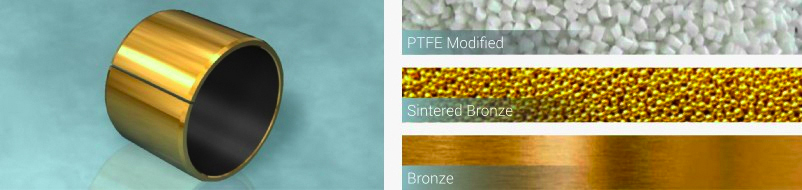

Sintered Bronze
The bush in Sintered Bronze give a wide range of applications, is realized with a powder of bronze sintered, calibrated and impregnated into specific oil (volume of impregnation of 25% ÷ 29% as per DIN 30910 Sint A50). During the application, this kind of material, thanks’ to the oil impregnation, developes a film of lubricant oil, between the shaft and the bush.
Chemical composition
| Element | Cu | Sn | Other |
|---|---|---|---|
| Min | Rest | % 8 | % 2 |
| Max | Rest | % 10,5 | % 2 |
Technical Details
| Maximum Specific Load Static | 10 N / mm² |
| Maximum Specific Load Dynamic | 5 N / mm² |
| Maximum Sliding Speed | 10 m / s (1970 fpm) |
| Friction Factor | 0,08 ÷ 0,12 |
| Service Temperature Minimum | -5 ° C (+23 ° F) |
| Service Temperature Maximum | + 90 ° C (+ 194 ° F) |
| Shaft Roughness (Suggested) | ≤0,2 Ra |
| Shaft Hardness (Suggested) | > 350 Hb |
| Density Min. | 5,6 g / cm³ |
| Density Max. | 6,0 g / cm³ |
| Porosity Min. | % 22,5 Vpor / Vtot |
| Porosity Max. | % 27,5 Vpor / Vtot |
| Hardness Min. | 30 HB |
Operating Conditions
 Dry |
 Oil |
 Grease |
 Water |
 Process Fluid |
|---|---|---|---|---|
Good |
Good |
Fair |
Inadvisable |
Inadvisable |
Catalogs
| Document Name | Download |
|---|---|
| Sintered Bronze (EN) | Download |
